Material & Geometry
Configure capacity and working ranges to match your specific workpieces.

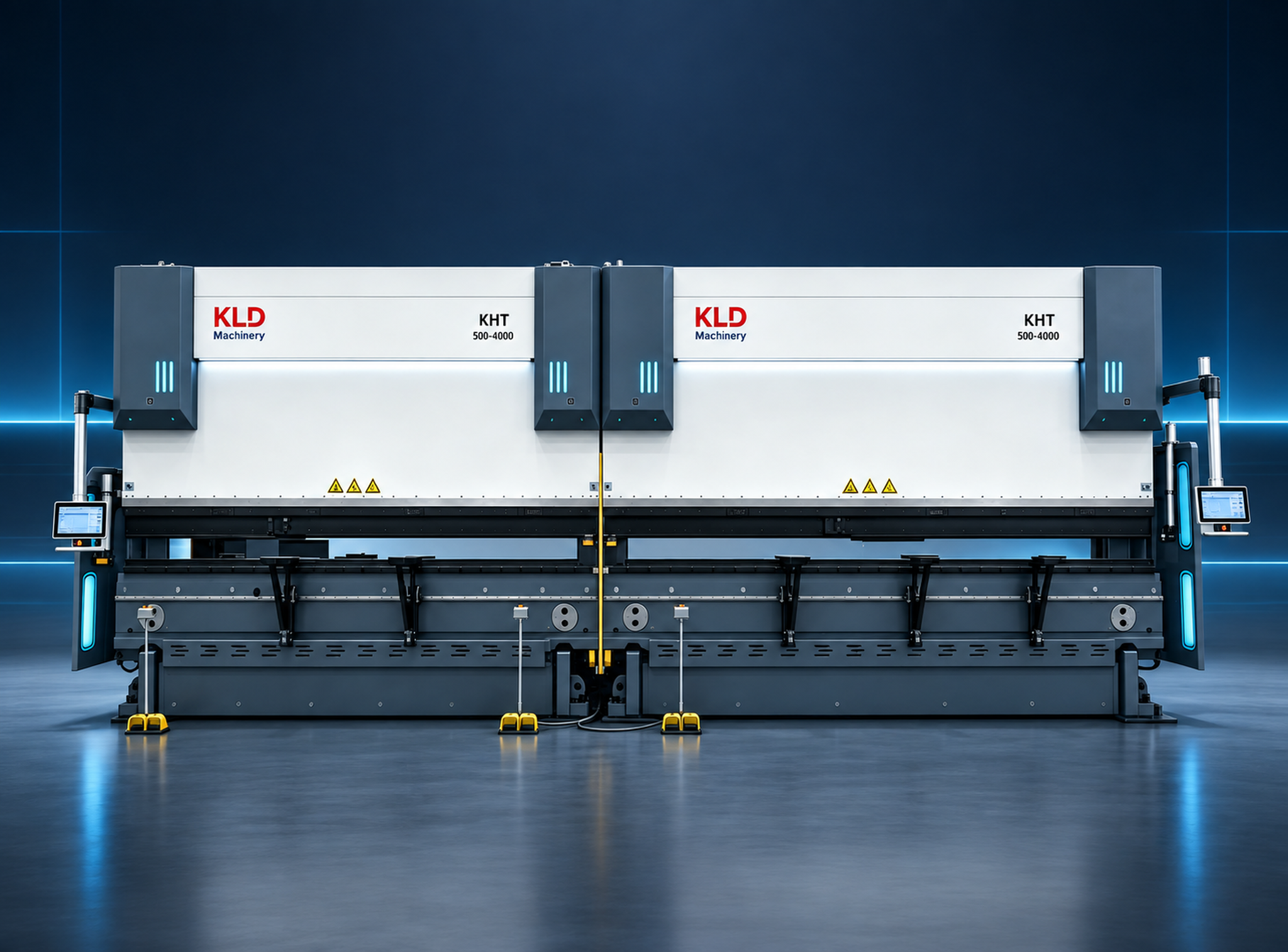

Tandem Series
Synchronized bending for ultra-long workpieces.
Two machines with matching configurations, coordinated through a shared control strategy for synchronized operation on long parts.
Engineered Around Your Production
See how KLD combines precision engineering, intelligent control and production-ready configuration.
A Machine Built for Your Production Reality
Different parts demand different processing strategies. Material properties, part geometry, required tolerances, and production volume all dictate the right machine configuration. We engineer the solution based on your application.
Consistency & Accuracy
Overcome material variations with intelligent compensation and closed-loop control systems.
Setup Efficiency
Reduce non-productive time with automated tool clamping and rapid positioning.
Automation Pathway
Prepare for future growth with interfaces ready for robotic integration and automated material handling.
Precision Built into Every Component
Explore the systems that define this product configuration.

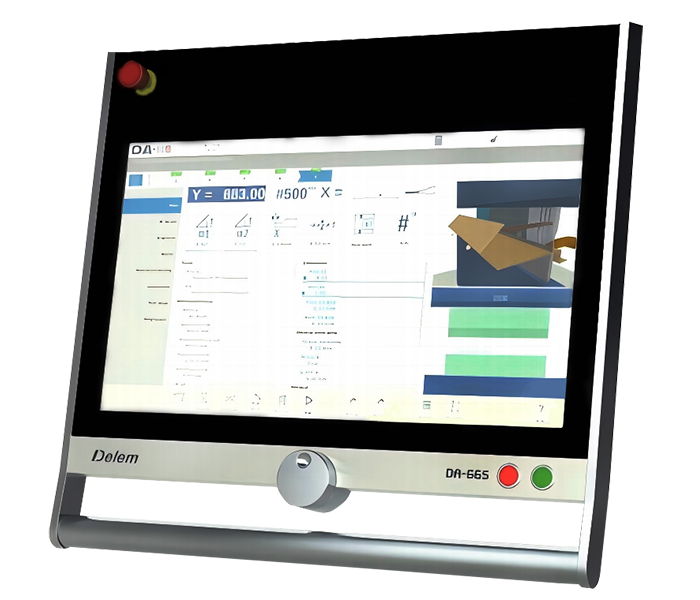

CNC Controller
High-performance CNC systems optimize bending cycles, reduce setup time, and support graphical programming.

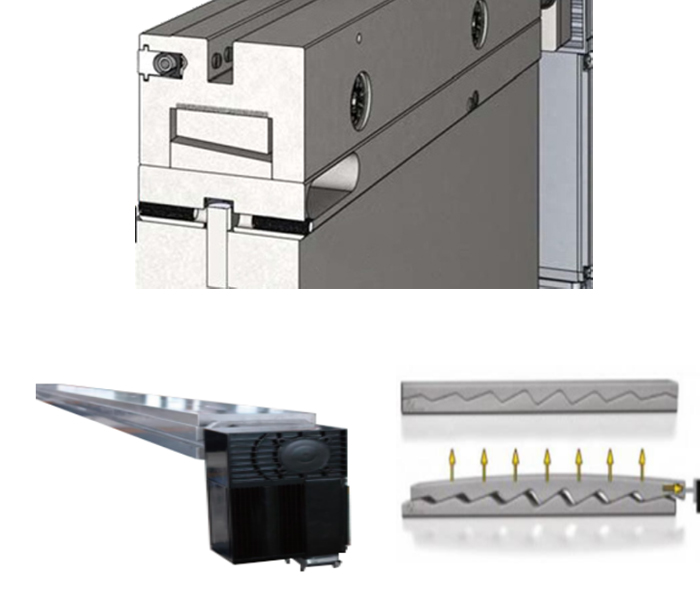

Mechanical crowning system
The unidirectional mechanical deflection compensation mechanism adopts a unique specially processed wedge block. Each set of wedge blocks is designed according to the deflection of the upper and lower beam. The CNC calculates the required compensation amount according to the load force when the workpiece is bent, and automatically controls the relative movement of the wedge block to effectively compensate for deflection. The mechanical compensation system, as well as the hydraulic one, is certainly a great help for the operator during bending operation; it is reliable, precise and is not subject to any oil leakage.

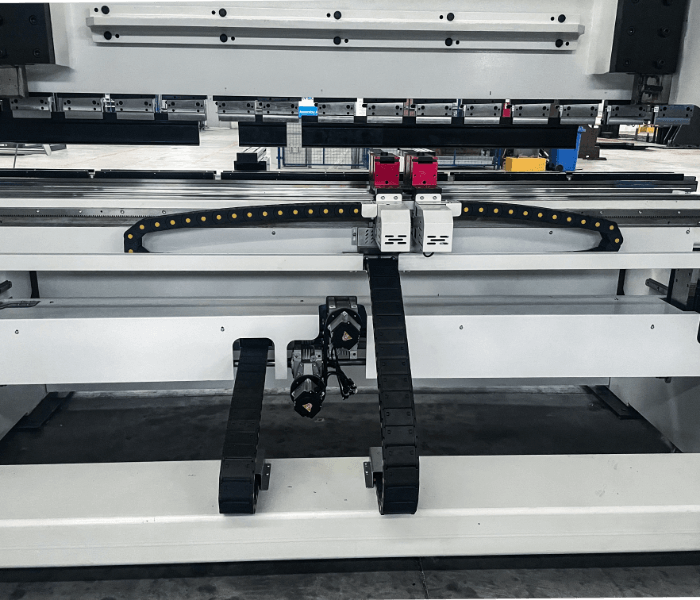

Back gauge system and rear finger
The back gauge system is another important part of the press brake as a guarantee of dimensional accuracy of the bending product. The 4 axes (X-R-Z1-Z2) back gauge of the standard series ensures the most flexible, precise and high-speed positioning of almost all complex bending work pieces, thanks to the guide design which foresees the use of double sliders to ensure the accuracy.

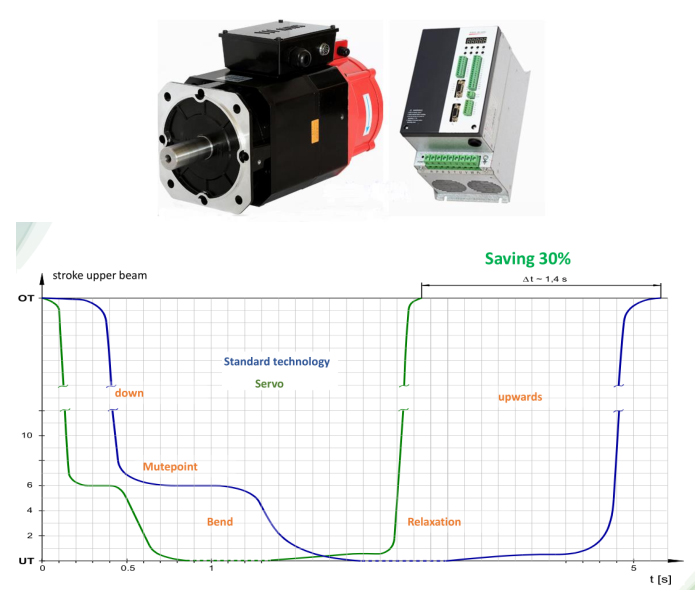

Servo motor
The motor offer excellent acceleration and are ideally suited for high speed and precision press brakes: ● High feed smoothness ● Large torque range ● High maximum speed ● High-resolution encoder Benefits: ● High travel speed in the downward and backward movement ● High energy savings ● Longer service life for pump, oil, filter and all related components Path-time diagram of the upper cylinder of a press brake.
HAWE Hydraulic System
HAWE hydraulic system: the hydraulic control system of the bending machine is composed of a SAKB pressure control block and two independent filling valves to ensure accurate and efficient operation of the CNC bending machine. All valves (except the filling valve) are integrated into one control unit. The bending force flow is controlled by proportional technology. In this way, the operating speed (approaching, working and returning) and the required pressure can be controlled.

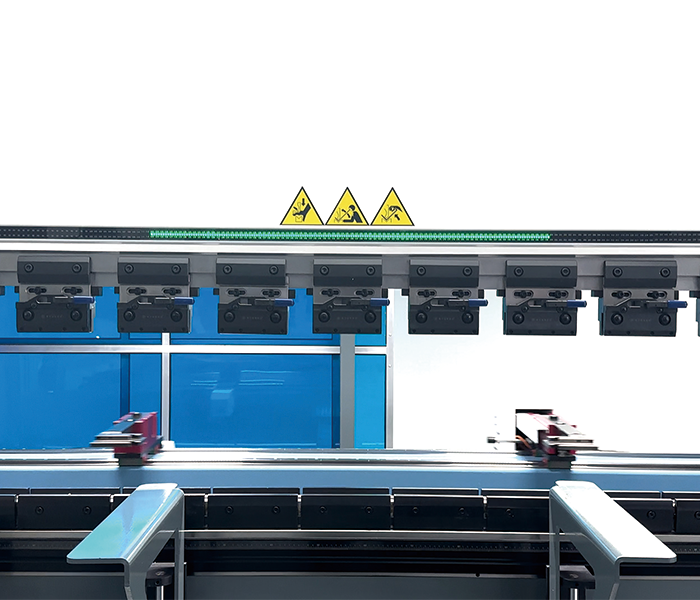

LED Bar to indicate back gauge position
※ Real-time tracking of the current position of the back gauge finger when bending. ※ The LED light strip on the top beam indicates the actual position of the “back gauge finger” allowing the operator to quickly align the workpiece during the bending process, thus improving bending efficiency ※ The LED light strip provides warning and protection signs by changing color according to the three press brake working conditions: approaching speed (yellow LED light), working mode (red LED light) and return (green LED light).

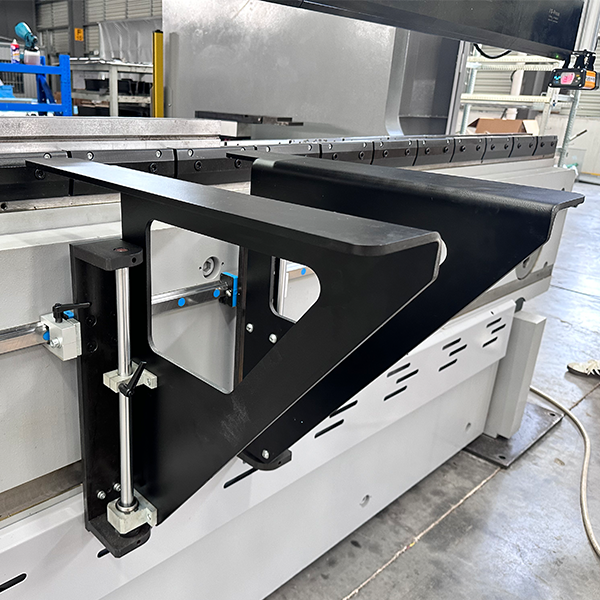

Manual front support (EZ)
Manual sliding front support arms.

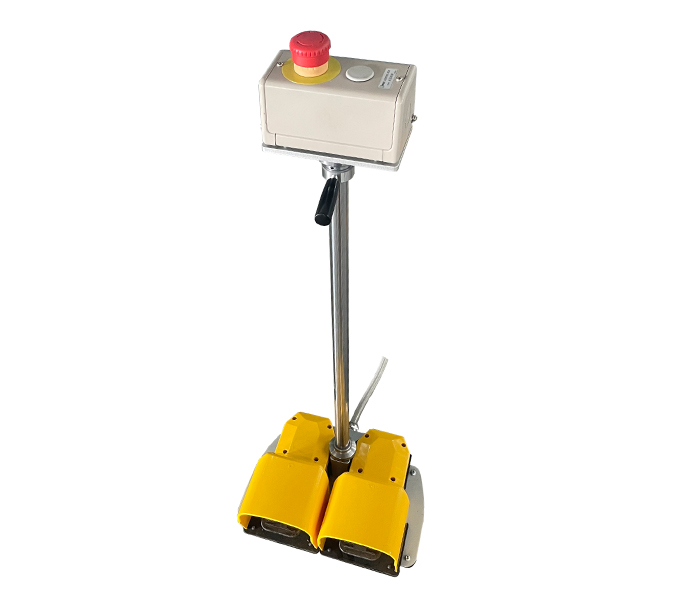

Foot pedal
Our foot pedal is in accordance to CE safety requirements; its features are as follows: ● Double safety switch which allows machine descent only if foot is totally inside the pedal; ● 3-position safety design ● With shielded snake skin hose cable ● Can be upgraded to wireless foot switch

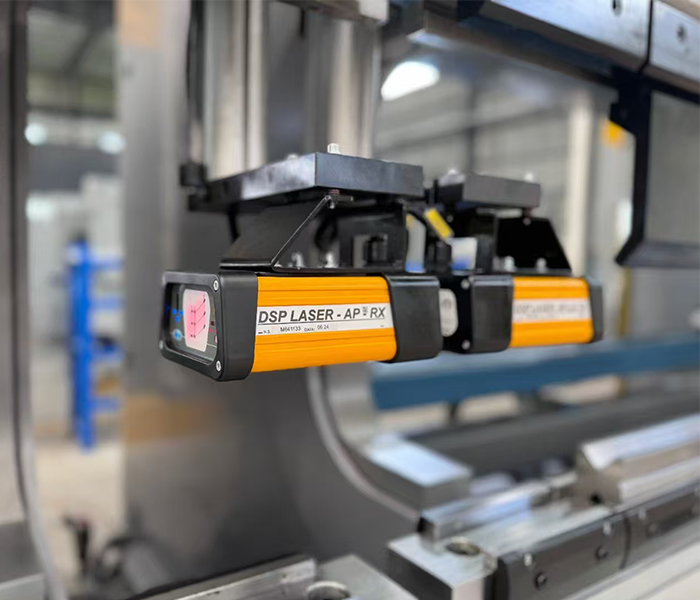

Safety device DSP AP+MCS
Main Technical Features: ● Laser protection, Multi beam Receiver ● Protective areas: Front, middle and rear ● The safety level is CAT.4 and SIL3 ● Detection Case protection degree: IP 65 ● Laser classification: class 1 M ● Response time: 5 ms ● Operating temperature 0°C~50°C ● Mounted on the upper beam ● Change Speed Point: 5mm + Stopping Space ● The maximum protective distance: 15M ● LED indicators show various states

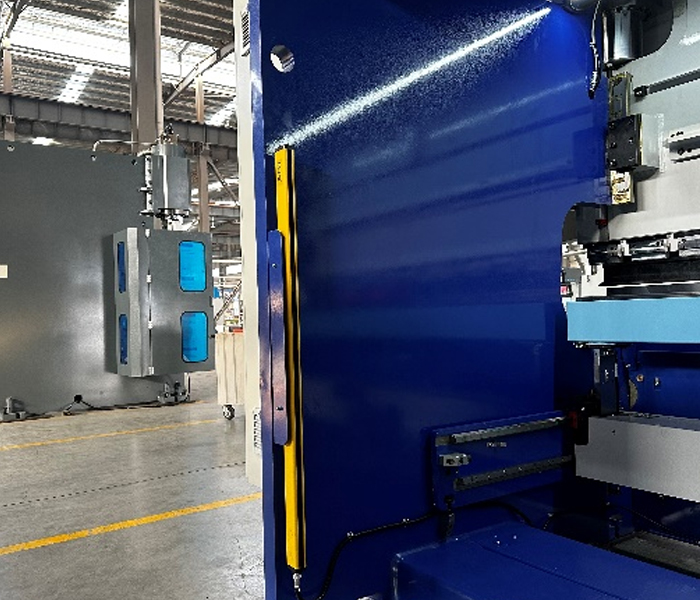

Rear safety protection
Consists of light guards mounted to the side frame which stops the machine if a human steps inside.

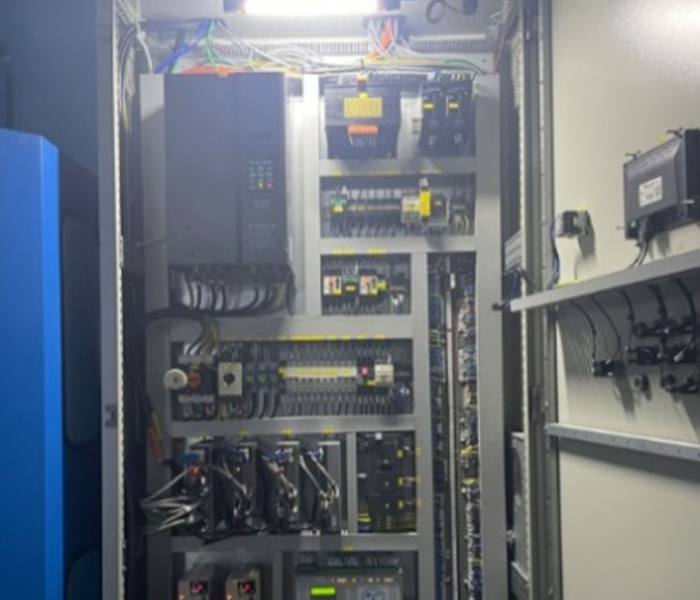

Electrical cabinet
K-PLC is a safety module developed by our company. Downstream and upstream dual channel mode is used to ensure machine safety; it also integrates the upper and lower fixtures, ordinary light barriers, dual pedal interface and it can be expanded for more functions. The indicators on the module provide great convenience for maintenance. It is equipped with an interface that allows direct communication with the software to locate the fault quickly and intuitively reduce downtime.

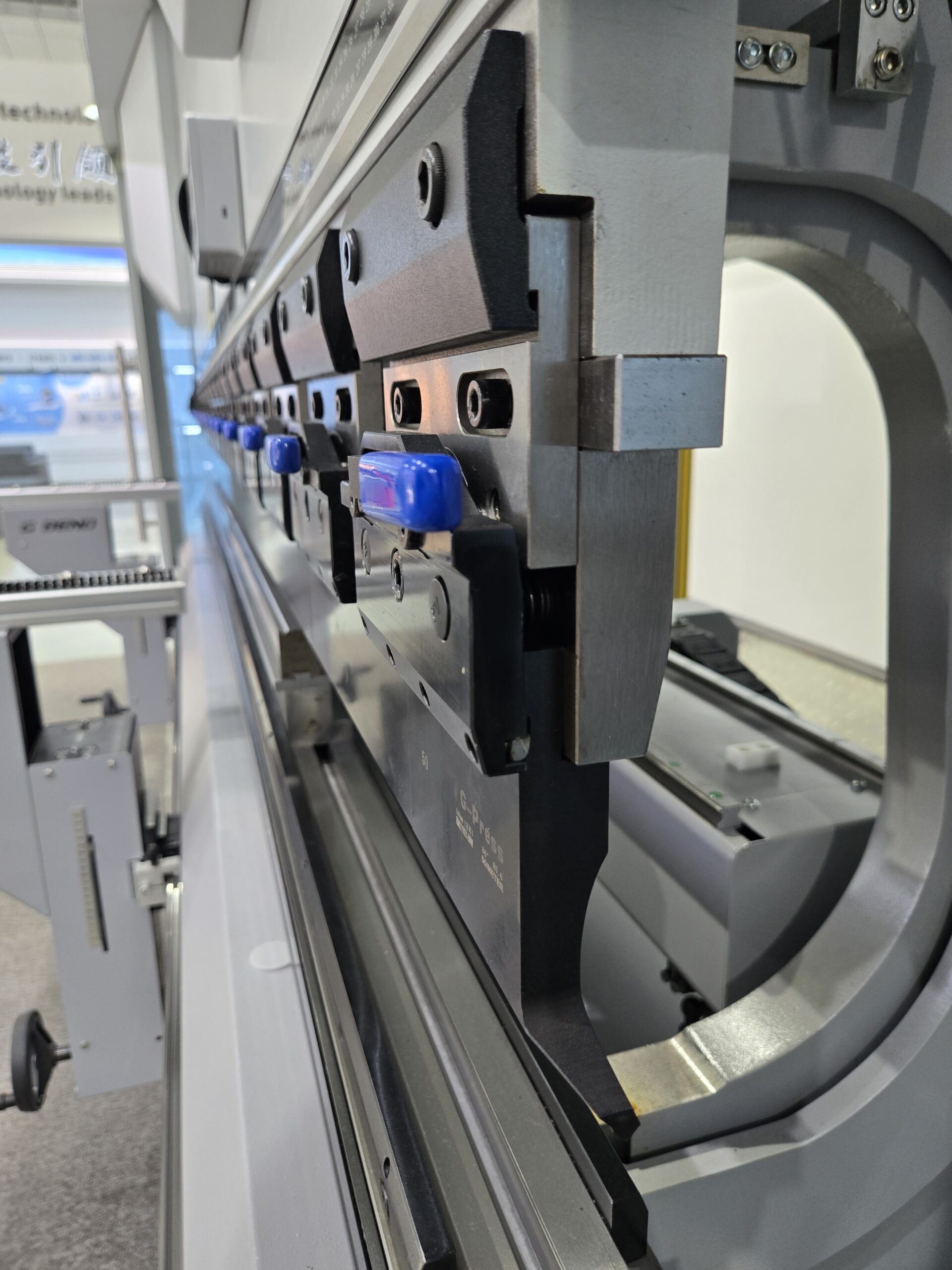

Manual top tool clamping mod.
Standard intermediate clamp with quick release lever for fast tool change. Suitable for vertical loading/unloading of tools. No need to slide the tools laterally.

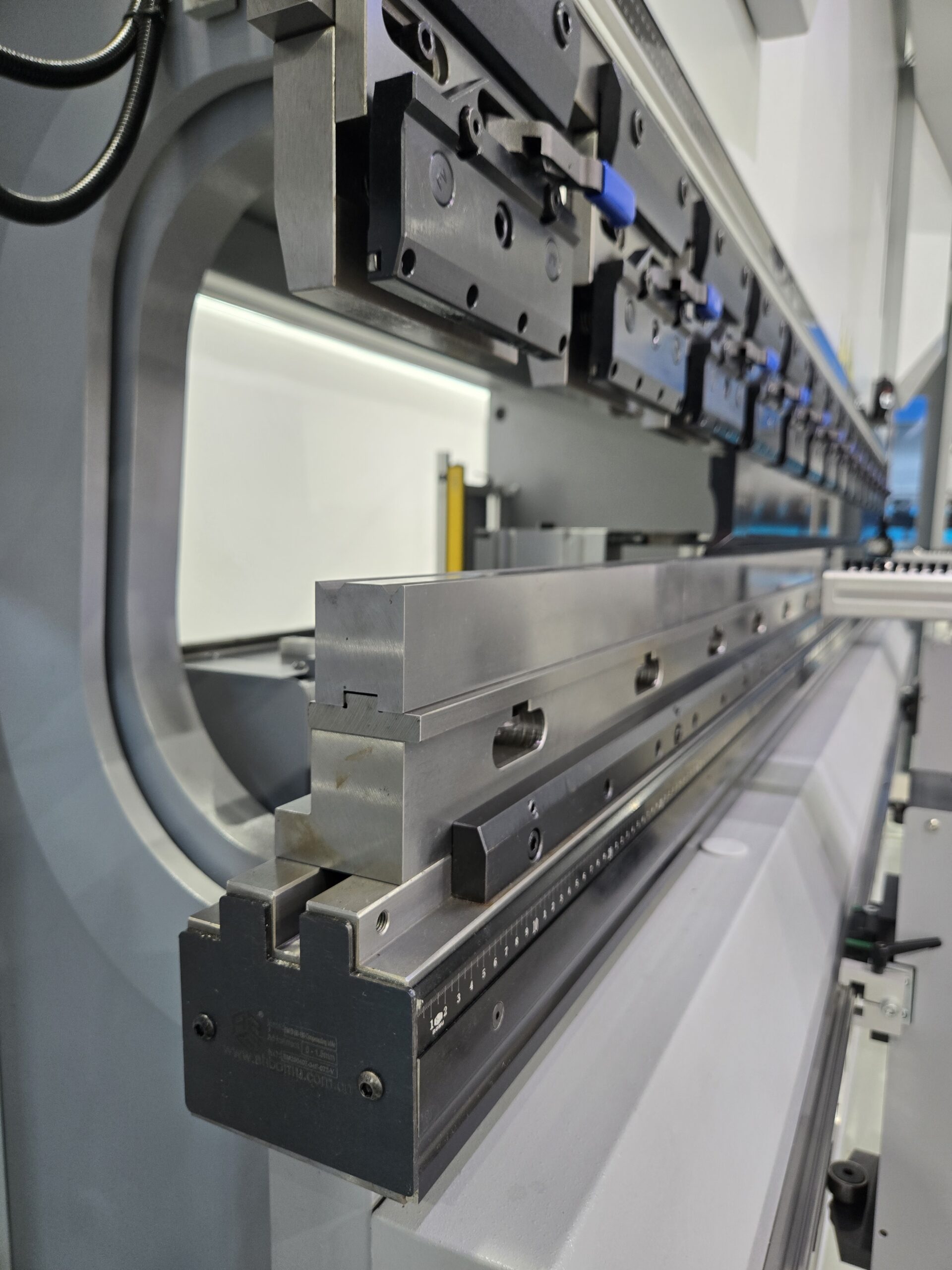

Manual bottom tool clamping mod.
Self-centering type. Available for 60-90 mm dies.
Frequently Asked Questions
Practical answers about configuration, delivery and support.
01What types of sheet metal machinery does KLD offer?
KLD provides sheet metal fabrication solutions covering CNC press brakes, panel benders, fiber laser cutting machines, and automation solutions.
Our solutions can be configured for different materials, production requirements, part geometries, and levels of automation.
02How do I choose the right machine for my production needs?
The right solution depends on factors such as material type and thickness, sheet dimensions, part geometry, production volume, accuracy requirements, and automation needs.
Share your drawings, material specifications, or production requirements with KLD, and our team can recommend a suitable machine configuration for your application.
03Can KLD provide customized machine configurations?
Yes.
KLD can offer configuration options based on your processing requirements, tooling, control system, machine specifications, production workflow, and automation needs.
For projects requiring more than a standalone machine, integrated processing and automation solutions can also be considered.
04Can KLD provide complete automation solutions?
Yes.
KLD's automation solutions can include:
- Robotic bending cells
- Laser cutting with loading and unloading
- Sheet storage and material handling
- Automated production cells
- Flexible production lines
The configuration can be adapted to the customer's production process, part mix, and automation requirements.
05Are KLD machines CE compliant?
CE-related conformity documentation is available for KLD's main product categories, subject to the specific model and configuration.
The documentation provided for the current product range includes relevant European machinery, electrical, EMC, and laser-safety requirements. For example, the supplied documentation covers Machinery Directive 2006/42/EC and relevant EN standards for press brakes, panel benders, and fiber laser cutting machines.
The applicable certification and documentation will be confirmed according to the selected model and configuration.
06What quality checks are performed before delivery?
Each machine undergoes inspection and testing before delivery.
Depending on the machine and project requirements, checks may cover mechanical performance, electrical systems, machine accuracy, safety functions, control systems, and key operating parameters.
Relevant inspection and testing documentation can be provided according to the agreed project requirements.
07Does KLD provide installation and commissioning?
Yes.
Installation and commissioning are provided for KLD equipment.
The specific service arrangement, including on-site support and commissioning scope, will be confirmed according to the equipment, destination, and project requirements.
08Does KLD provide operator training?
Yes.
KLD provides operator training and basic equipment operation guidance as part of the equipment delivery and commissioning process.
Training can cover machine operation, basic settings, safe use, and routine operating procedures. The specific training scope depends on the machine and project.
09Is technical and after-sales support available?
Yes.
KLD provides technical and after-sales support covering installation, commissioning, operator guidance, troubleshooting, and equipment service.
For customers requiring replacement components, spare parts can also be purchased separately when needed.
10What is the warranty period for KLD machines?
The standard warranty period is 12 months, unless otherwise agreed in the sales contract.
Warranty terms and coverage will be specified according to the machine and project.
11What is the typical lead time?
Lead time depends on the machine model, configuration, customization requirements, and order quantity.
The estimated delivery schedule will be confirmed with each quotation and order.
12What are KLD's payment terms?
Payment terms are generally payment in full before shipment, unless otherwise agreed between KLD and the customer.
For specific projects, alternative payment arrangements may be discussed and agreed during the quotation and contract stage.
13What information should I provide to request a quotation?
For an accurate recommendation and quotation, please provide as much of the following information as possible:
- Material type
- Material thickness
- Sheet or part dimensions
- Part drawings or samples
- Required production volume
- Accuracy requirements
- Desired automation level
- Destination country
- Any preferred machine configuration
If some information is not yet available, our team can help determine the required specifications.
1414. How can I get a quotation from KLD?
Send us your part drawings, material specifications, production requirements, or project details.
Our team will review your requirements and recommend a suitable machine or production solution, together with the relevant configuration and quotation.
From Requirement to Reliable Production
1. Requirement Review
We map the part, material and production target.
2. Configuration
The machine and options are matched to the process.
3. Factory Acceptance
Performance is verified before shipment.
4. Installation & Support
Your team receives commissioning and training support.
